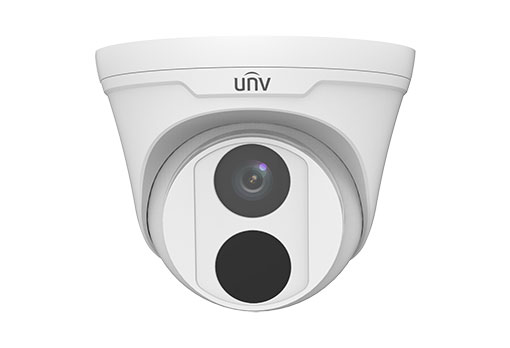

Uniview IPC3614LR3-PF28 4MP IR Ultra 265 Outdoor Turret IP Security Camera

IPC3614LR3-PF28 Features:

Optics
1. Day/night functionality
2. SmartIR, up to 30 m (98 ft) IR distance
3. 2D/3D DNR (Digital Noise Reduction)

Compression
1. Ultra 265,H.265, H.264, MJPEG
2. Triple streams
3. 9:16 corridor format

Network
1. ONVIF Conformance
2. Structure Wide temperature range: -20°C to 50°C (-4°F to 122°F)
3. Wide voltage range of ±25%

Structure
1. Wide temperature range: -30°C to 60°C (-22°F to 140°F)
2. Wide voltage range of ±25%
3. IP67
4. 3-Axis

IPC3614LR3-PF28 Specification:
IPC3614LR3-PF28
Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0 4.0mm@2.0
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 42 16.8 8.4 4.2
4
Angle of view(H) 104.4°
Angle of View (V) 54.4°
Angle of View (O) 135.7°
Shutter Auto/Manual, 1~1/100000 s
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Min. Illumination Colour: 0.03 Lux (2.0, AGC ON)
0 Lux with IR
IR Range Up to 30m (98 ft) IR range
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
WDR DWDR
Noise Reduction 2D/3D
Video
Video Compression Ultra 265,H.265,H.264,MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream:4MP (2592*1520): Max. 20 fps;
Sub Stream:720P (1280*720): Max. 20 fps;
Third Stream:D1 (720×576): Max. 20 fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Network
Protocols IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration ONVIF(Profile S,Profile T),API
Interface
Network 10/100M Base-TX Ethernet
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 4W
Dimensions (Ø x H) Φ118x 96 mm (Φ4.6” x 3.8”)
Weight 0.35kg (0.77lb)
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection IP67
